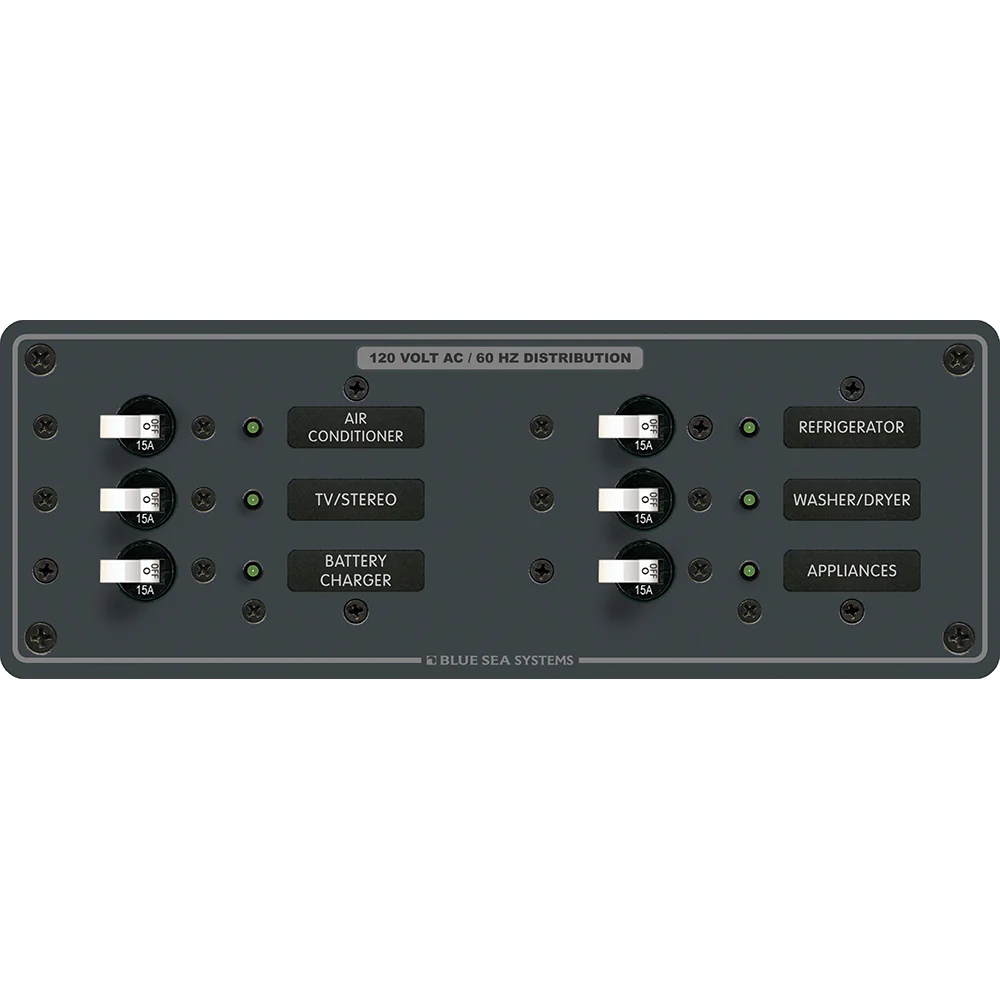

8097 AC 6 Position Toggle Circuit Breaker Panel - White Switches

Features:

• All hot, neutral, and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit posistions
• Maximum panel amperage - 100 Amperes

Specifications:

• Positions: 6
• Nominal Voltage: 120v AC
• Maximum Amperage: 100a
• Height: 3.75"
• Width: 10.5

Included:

• (6) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8031 Basic AC Panel Label Set - 30 Labels
• (6) 8034 LED - 120v AC Green

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 6
• AC/DC: AC
• Voltage: 120v
• Box Dimensions: 5"H x 9"W x 12"L WT: 2.4 lbs
• UPC: 632085080976

Owner's Manual (pdf)
