The TLA100 is used to adapt commercially available resistive tank senders to the NMEA 2000

TLA100 NMEA 2000® Tank Level Adapter User's Manual

Data Sheet

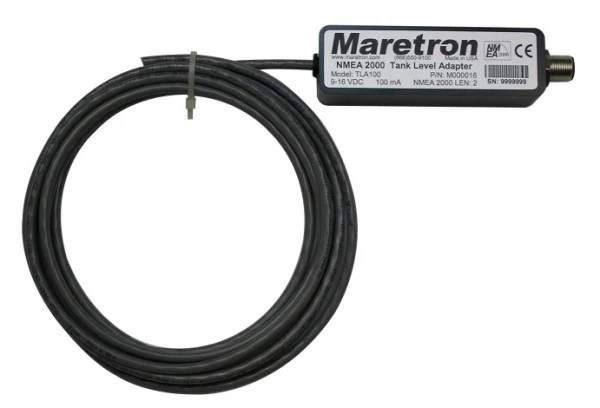

The TLA100 is used to adapt commercially available resistive tank senders to the NMEA 2000® network. This allows you to observe tank levels anywhere on the vessel where there are NMEA 2000® compatible displays such as the Maretron DSM250.

The TLA100 is compatible with both the American standard (240-30 ohm) and the European standard (10-180 ohm) resistive senders. In fact, the TLA100 can be calibrated for any resistance between 0 and 300 ohms.

Unlike most tank senders that only work with rectangular tanks, the TLA100 can be calibrated for irregular tank shapes so you know the true level of the tanks. You can also use the TLA100 with analog gauges at the same time as NMEA 2000® so you don’t have to give up existing analog gauges to enjoy the advantages of digitally networked information.

The Maretron TLA100 has the following features:

• NMEA 2000® Interface

• Adapts American standard (240-30 ohm) resistive senders to NMEA 2000® Network

• Adapts European standard (10-180 ohm) resistive senders to NMEA 2000® Network

• Calibrated for any Resistance Range from 0 to 300 Ohms or 300 to 0 Ohms

• Accommodates Irregularly Shaped Tanks with 16 Point Calibration

• 16 Programmable Tank Types Including Fuel, Fresh Water, Waste Water, Live Well

• Programmable Tank Number(s) Up to 16 per Tank Type

• Programmable Tank Capacity

• Works Alongside of Analog Gauges

• Can be Used Standalone without Analog Gauges
