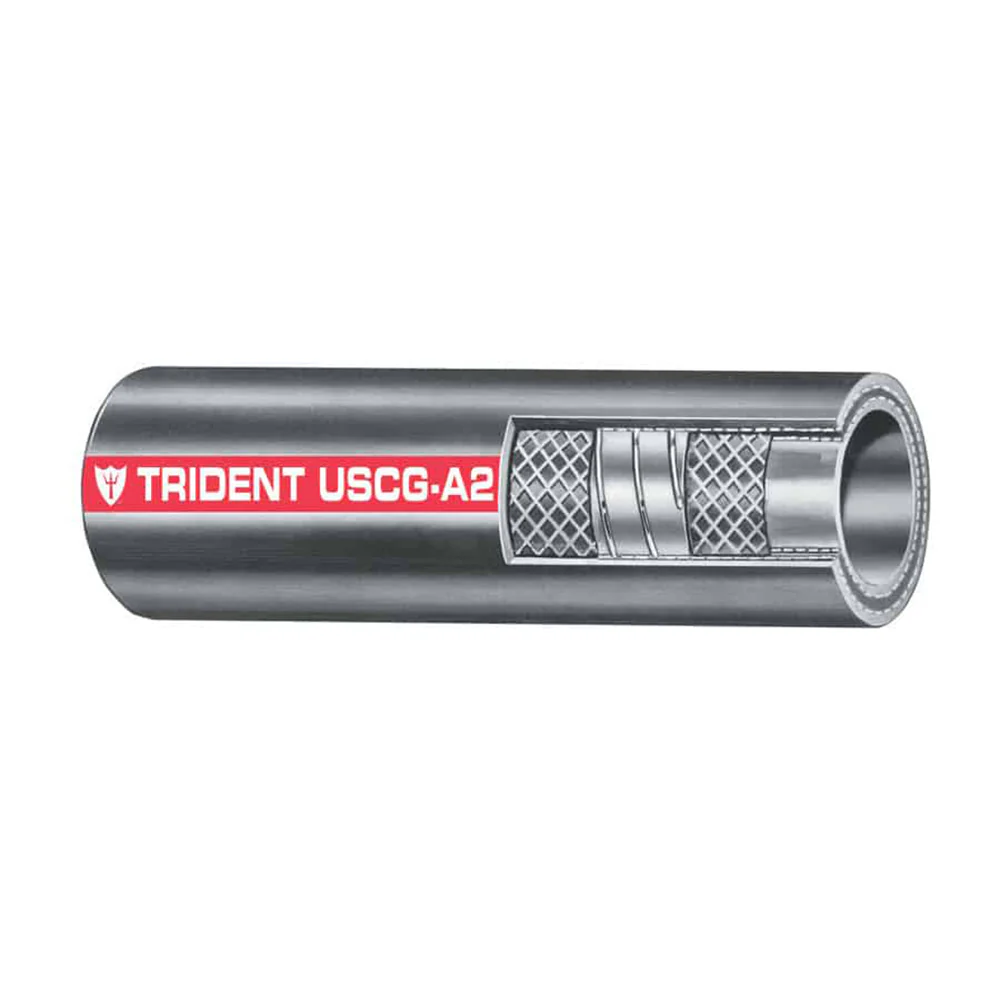

2" Type A2 Fuel Fill Hose - Sold by the Foot

Trident 2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).

Features:

• Sold by the foot
• This hose is built with the best fuel, fire, and age-resistant formulation
• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also, provides excellent bend-ability

Applications:

• Marine Fuel Hose for fill and vent plus diesel distribution
• Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube & Cover: NBR / Neoprene
• Reinforcement: High tenacity polyester 2 spiral, spring steel helix
• Temperature Range: -20°F to 212°F (-20ºC to 100ºC)

Specifications:

• Inner Diameter: (inch) 2" / (mm) 50.8
• Outer Diameter: (inch) 2.48 / (mm) 63.5
• Wall: (inch) 0.25 / (mm) 6.4
• Working Pressure: (psi) 50 / (mpa) 0.345
• Bend Radius: (inch) 7.0" / (mm) 178

*The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• ID Diameter (inches): 2"
• Length (Feet): Sold By The Foot
• Box Dimensions: 2"H x 2"W x 2"L WT: 1.12 lbs

Quick Guide (pdf)
