Trident Marine 3" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-390-S/S]

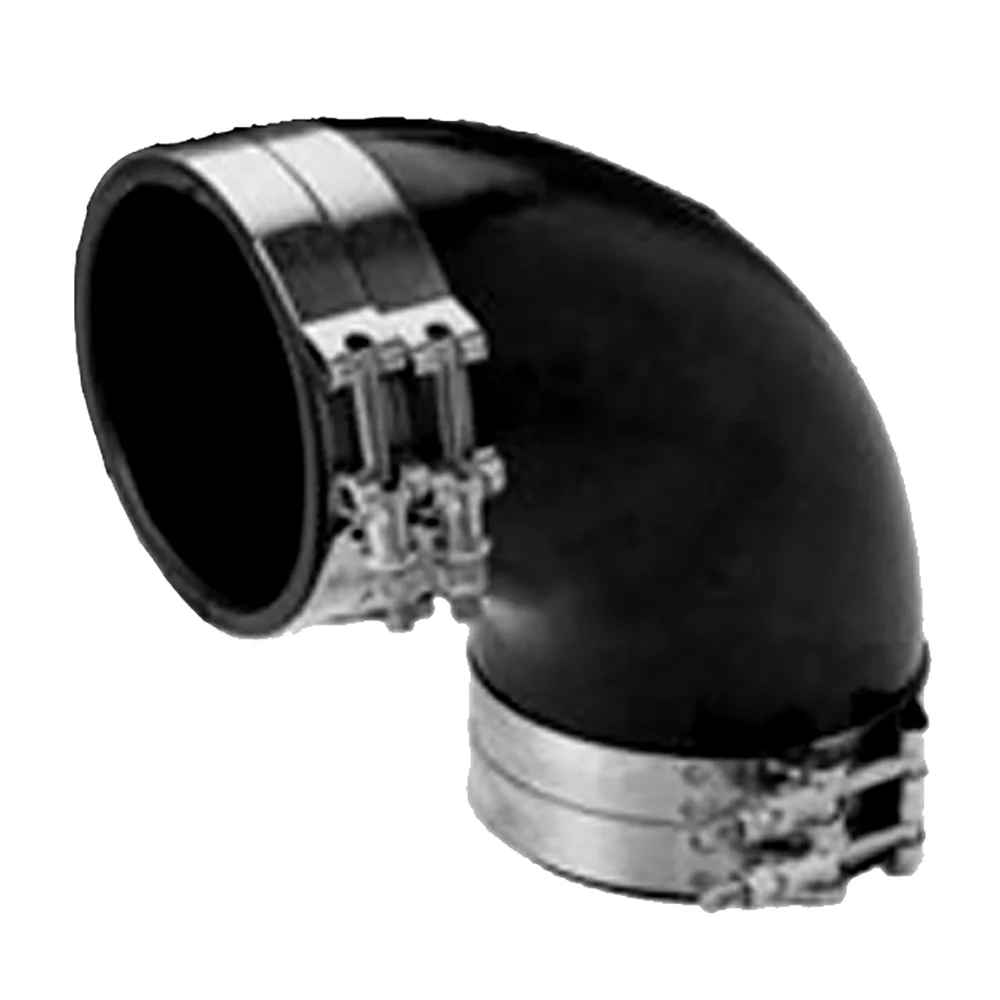

3" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6ā I.D. or bigger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel clamps are included
- This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
- Black high-temp EDPM rubberĀ
Construction:
- Color: Black
- Reinforcement: Reinforcing ribs on 6ā I.D. and above
- Temperature Range: up to 250Ā°F (121Ā°C)
Specifications:

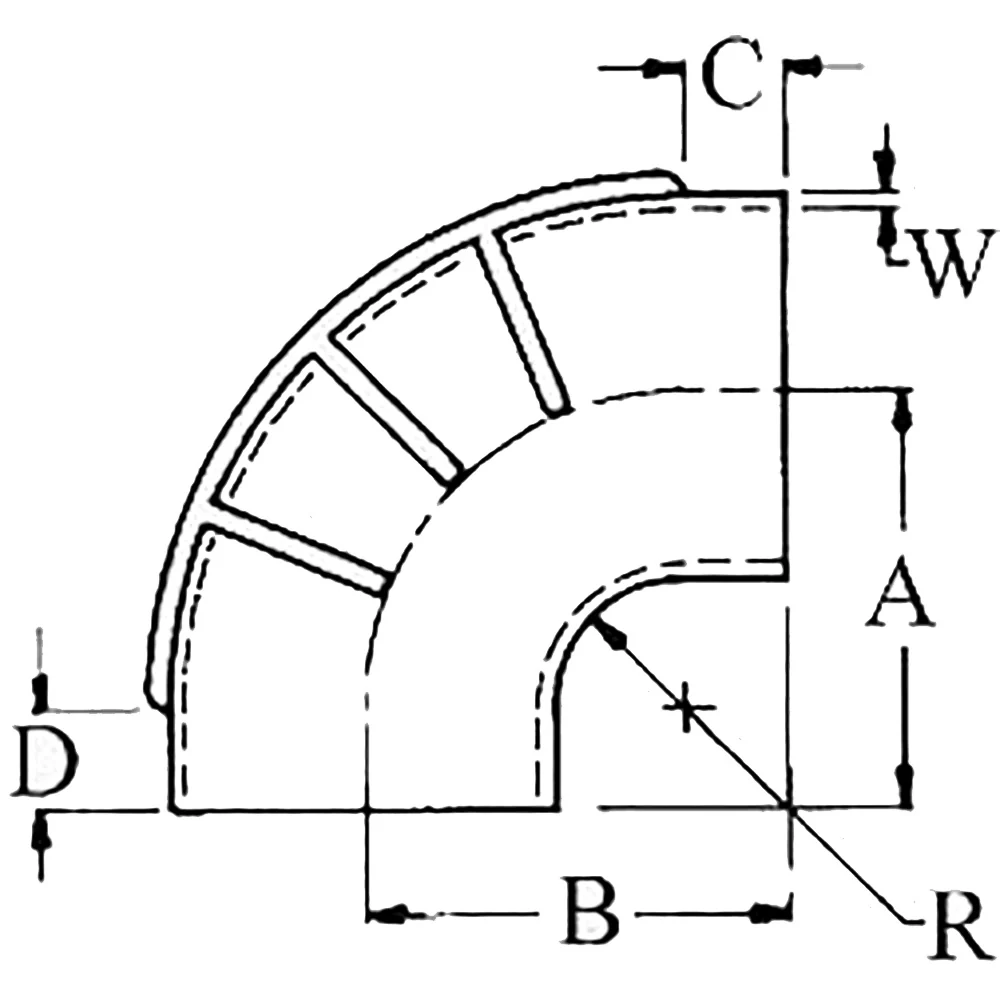

- Inner Diameter: (inch) 3ā / (mm) 76.2
- A: (inch) 5.25" / (mm) 133
- B: (inch) 5.25ā / (mm) 133
- C: (inch) 1.75ā / (mm) 44.4
- D: (inch) 1.75ā / (mm) 44.4
- R: (inch) 2ā / (mm) 50.8
- W: (inch) 0.25ā / (mm) 6.4
- Elbow Degree: 90 degrees
Specifications:
- ID Diameter (inches): 3"
- Box Dimensions: 4"H x 4"W x 9"L WT: 1.6 lbs
- UPC: 704917000404
Quick Guide (pdf)
