Wichard Captive Pin Bow Shackle - Diameter 10mm - 13/32" [1445W]

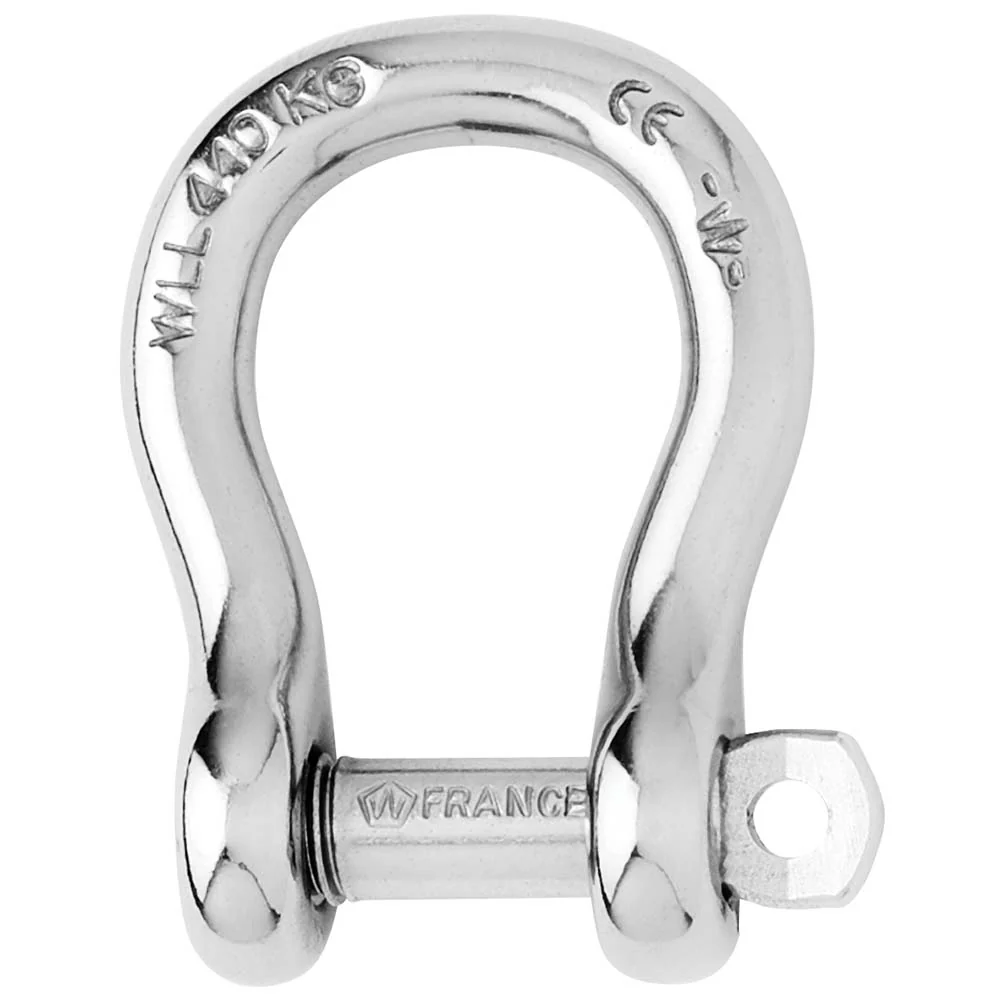

Captive Pin Bow Shackle - Diameter 10mm - 13/32"
Riggers have turned to Wichard shackles for their legendary quality, beautiful polish and smooth contours.
Drop-forged 316L stainless steel construction is a perfect blend of strength and corrosion resistance and ensures that shape remains intact at loads that meet or exceed the deformation point. Ā These bow shackles are ideal for applications that involve loads from multiple directions. Ā
At the thumb screw end, the elasticity of the shackleās body locks the pinās position into one or other of its small indentations. Ā There is no need to worry about it accidentally coming loose due to vibrations. Ā The pin is captive to prevent accidental loss. Ā
Features:
- Captive pin bow shackleĀ
- Outstanding working and breaking loads
- Single handed operation for more safety
- WLL: only for industrial applications (lifting i.eā¦)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Technical Specifications:
- Material - 316 stainless steel grade
- Working load - 3430 (lbs)Ā
- WLL - 2290 (lbs)
- Breaking load - 11460 (lbs)
- Weight - 0.306 (lbs)
*Sold as an Individual
